GN 822.9 定位柱

商品編號：GN 822.9
不鏽鋼微型定位柱GN 822.9以其小尺寸而著稱。

不鏽鋼微型定位柱是 GN 608.5 和 GN 608.6 不鏽鋼定位柱的經濟實惠的替代品。

在 Type C 型式中，縮回定位銷後，按鈕可以旋轉 30°，使用定位鎖將其保持在“縮回”位置。
分享：
加入洽詢單

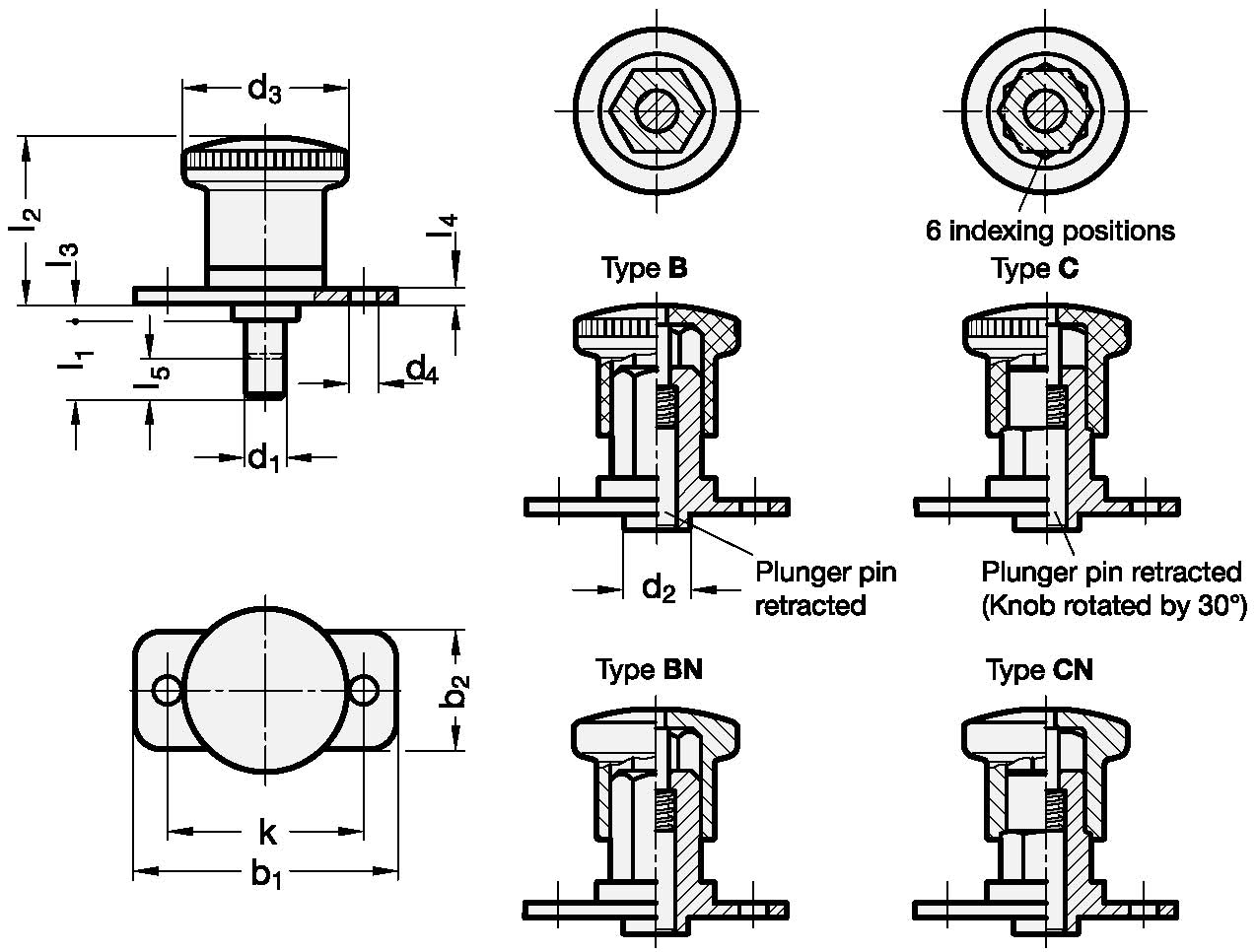

sketch

規格

本體材質 : 銷心材質 : 手鈕材質 :
不鏽鋼 AISI 304 不鏽鋼 AISI 303 PA 塑膠-黑色霧面
霧面不鏽鋼 AISI CF-8

型式 :

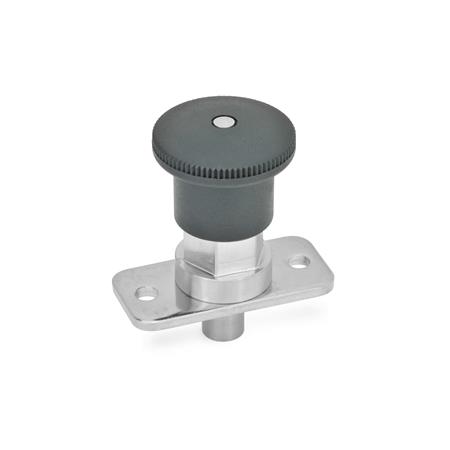

Type B : 無鎖定, 帶PA塑膠手鈕

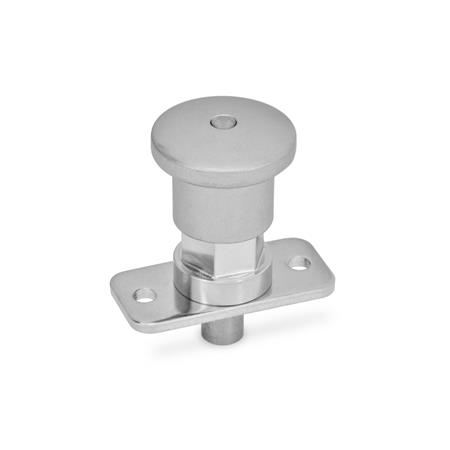

Type BN : 無鎖定, 帶不鏽鋼手鈕
Type C : 可鎖定, 帶PA塑膠手鈕
Type CN : 可鎖定, 帶不鏽鋼手鈕

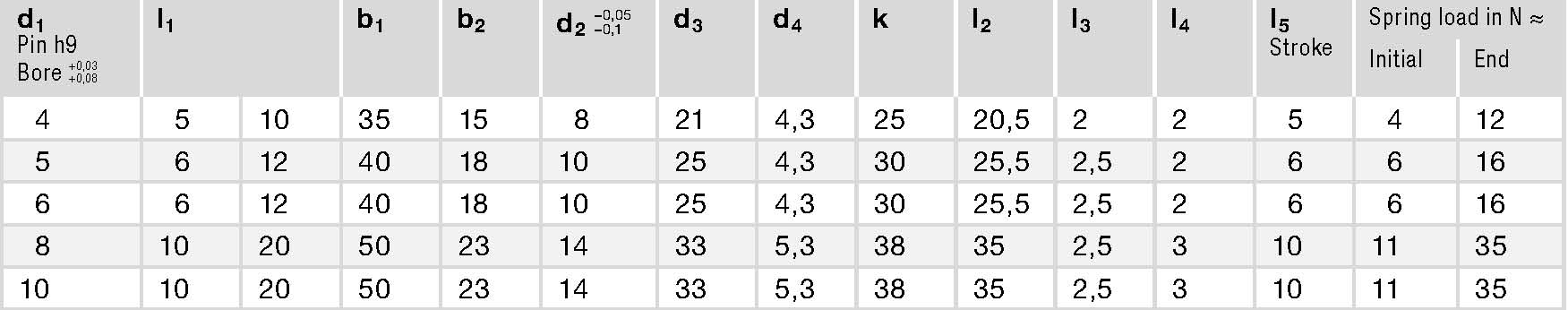

spec
