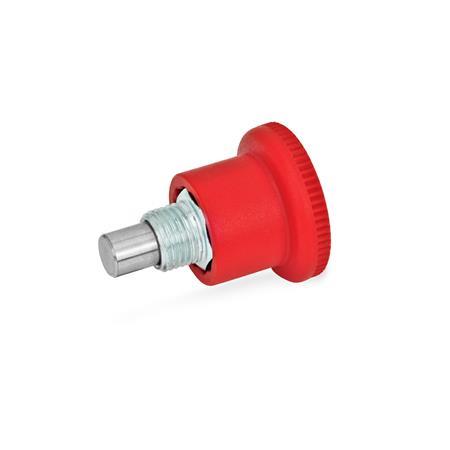

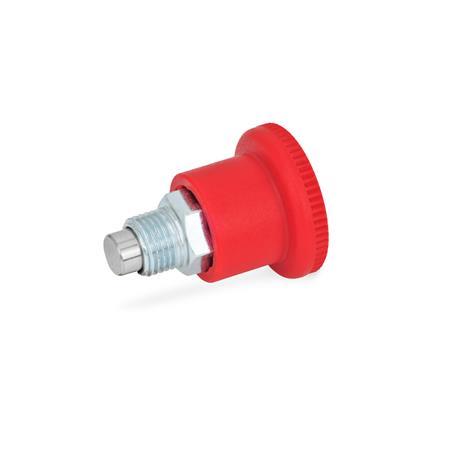

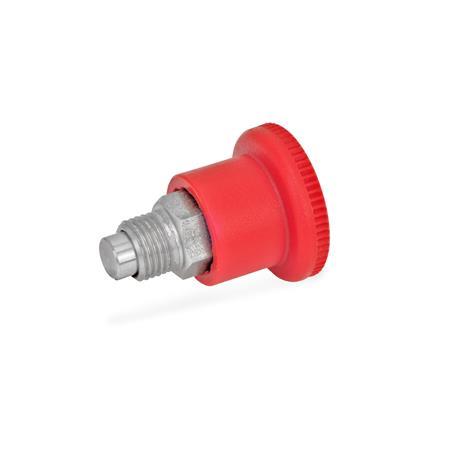

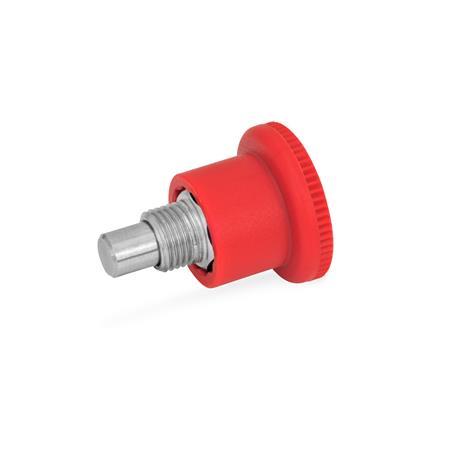

GN 822 定位柱

商品編號：GN 822
GN 822 微型定位柱以其小尺寸而著稱。它們設計用於安裝在薄壁鈑金結構中。

在 Type C 型式中，縮回定位銷後，按鈕可以旋轉 30°，使用定位鎖將其保持在“縮回”位置。
分享：
加入洽詢單

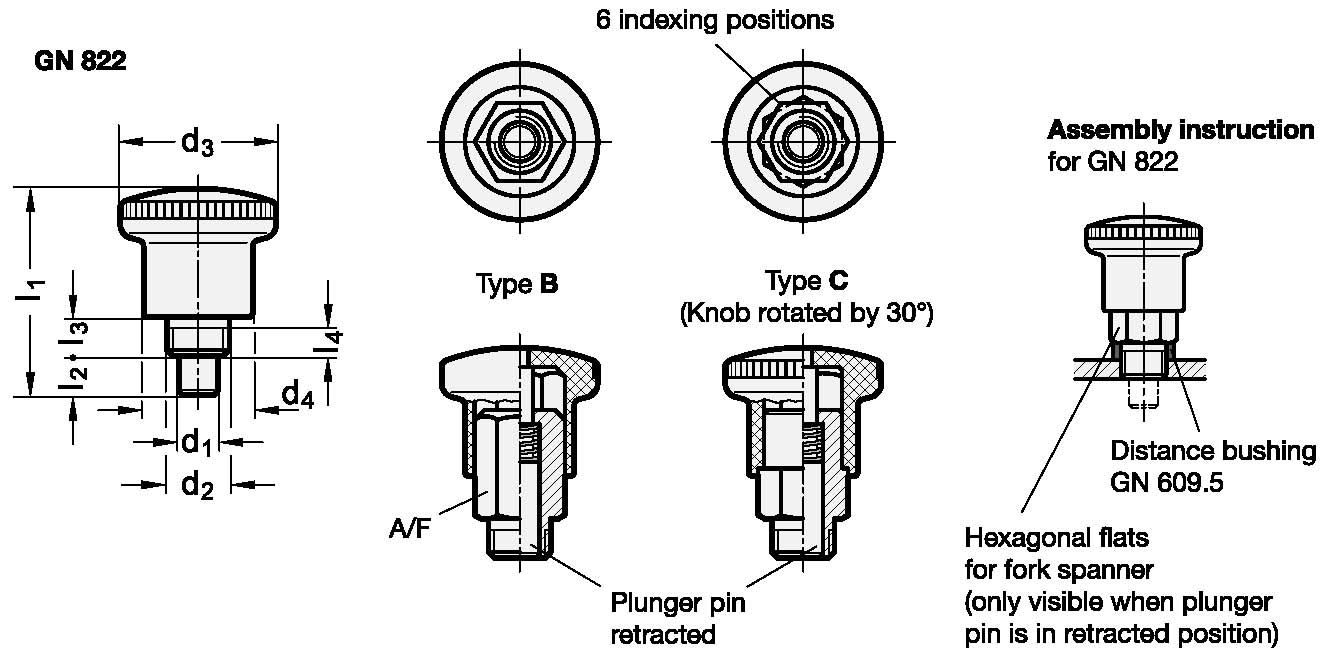

sketch

規格

本體材質 : 銷心材質 : 手鈕材質 :
ST - 鍍鋅鋼
NI - 不鏽鋼 AISI 303		 不鏽鋼 AISI 303 PA 塑膠
紅色 RAL3000

型式 :
Type B : 無鎖定
Type C : 可鎖定

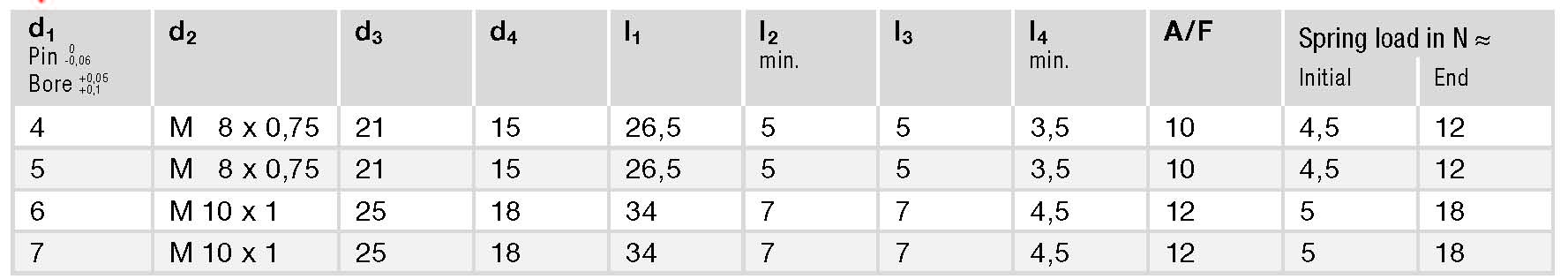

GN 822 spec
