GN 817.2 定位柱

商品編號：GN 817.2
不鏽鋼分度柱塞 GN 817.2 對應於 GN 817，它們只是有一個更長的旋鈕。

C / CK 型用於柱塞必須保持在縮回位置的應用。為此，旋鈕在縮迴后旋轉 90°。凹口使柱塞保持在這個位置。
分享：
加入洽詢單

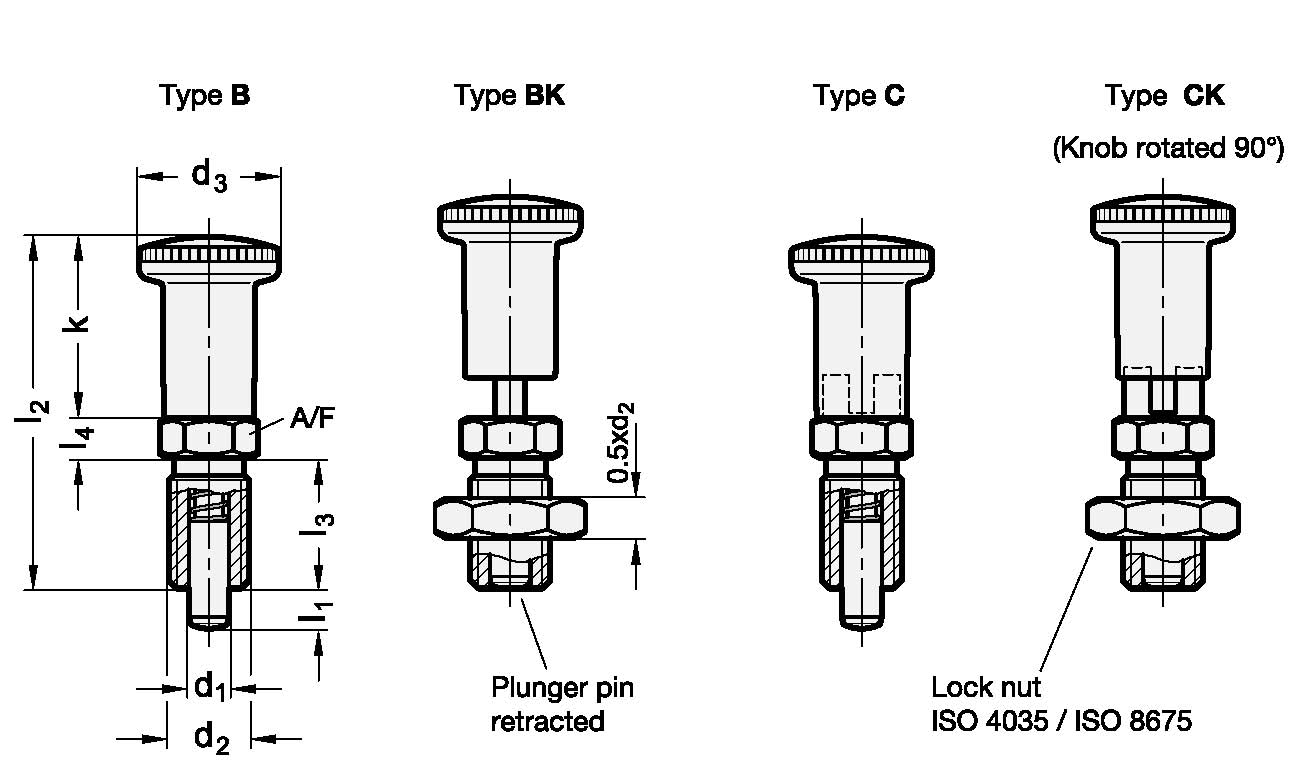

GN 817.2 sketch

規格

本體材質 : 手鈕材質 : 銷心材質 :
NI - 不鏽鋼 AISI 303 PA 塑膠
黑色霧面		 鍍鎳處理

型式 :
Type B : 無鎖定，無螺帽
Type BK : 無鎖定，有螺帽
Type C : 有鎖定，無螺帽
Type CK : 有鎖定，有螺帽

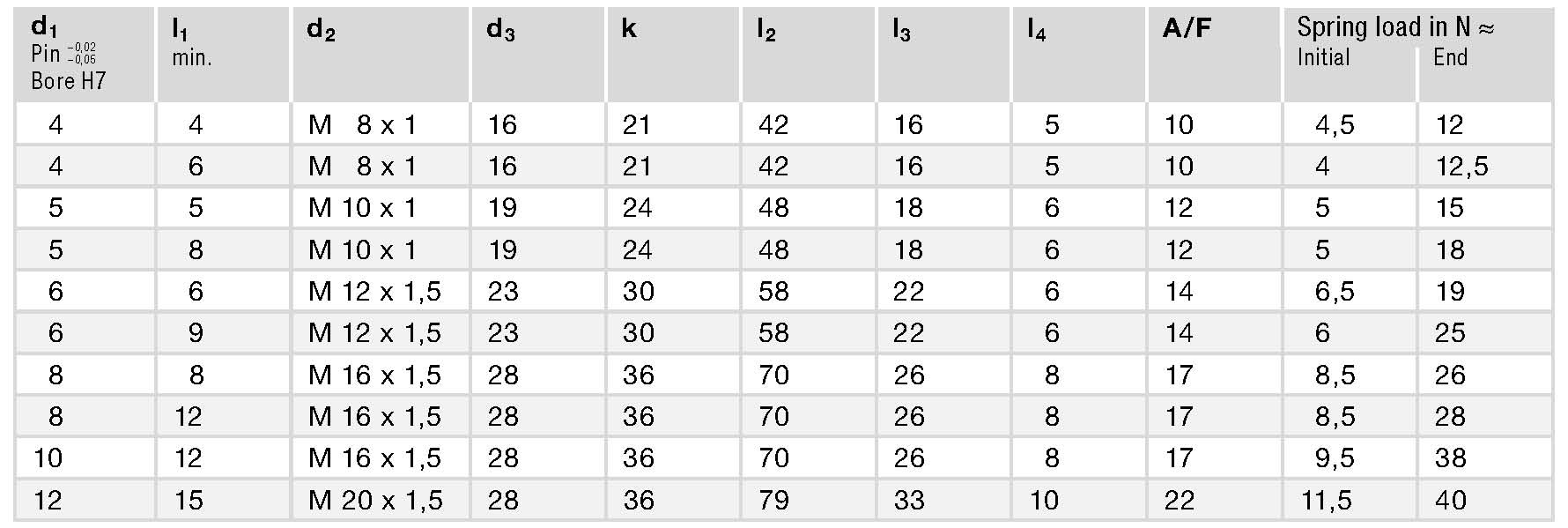

GN 817.2 spec
