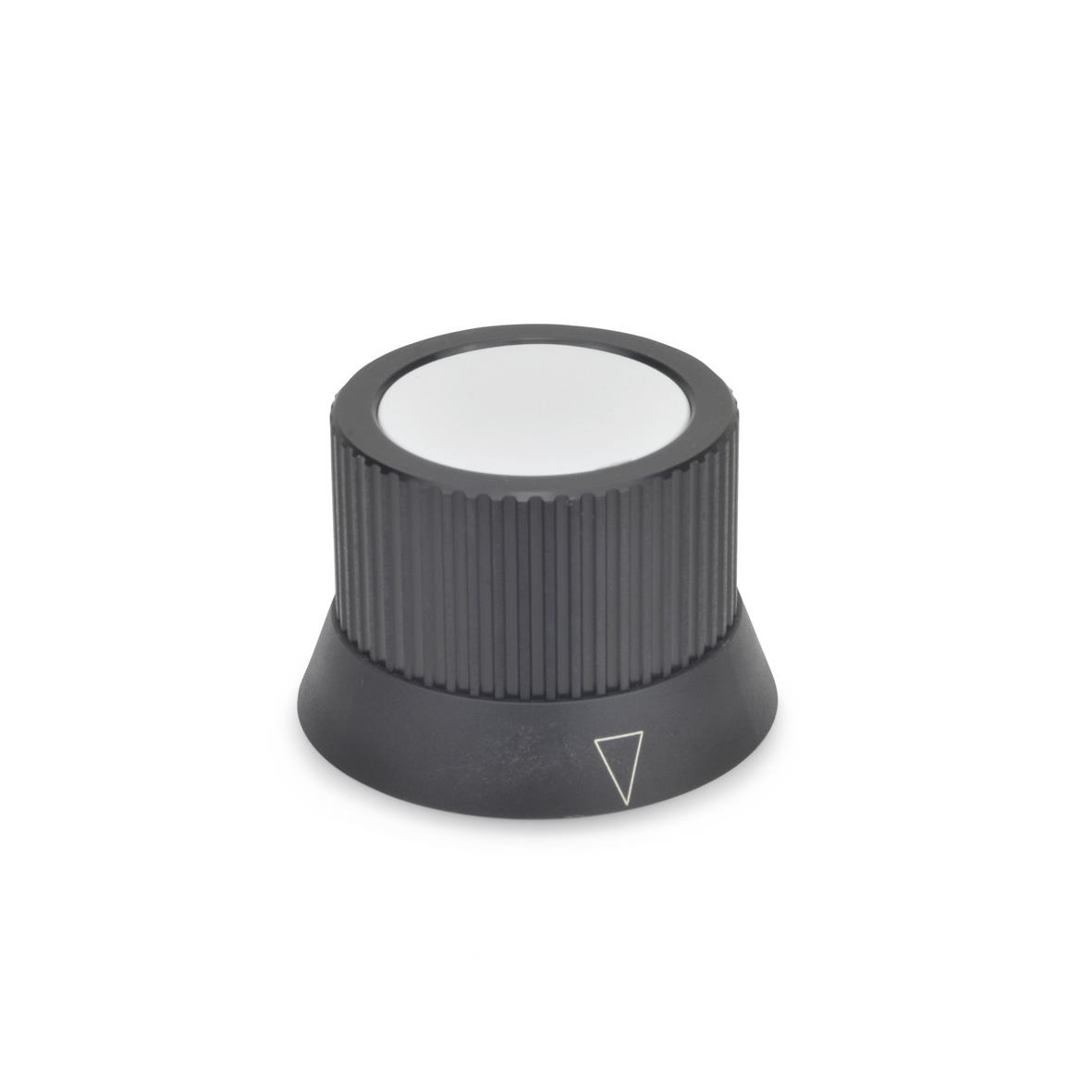

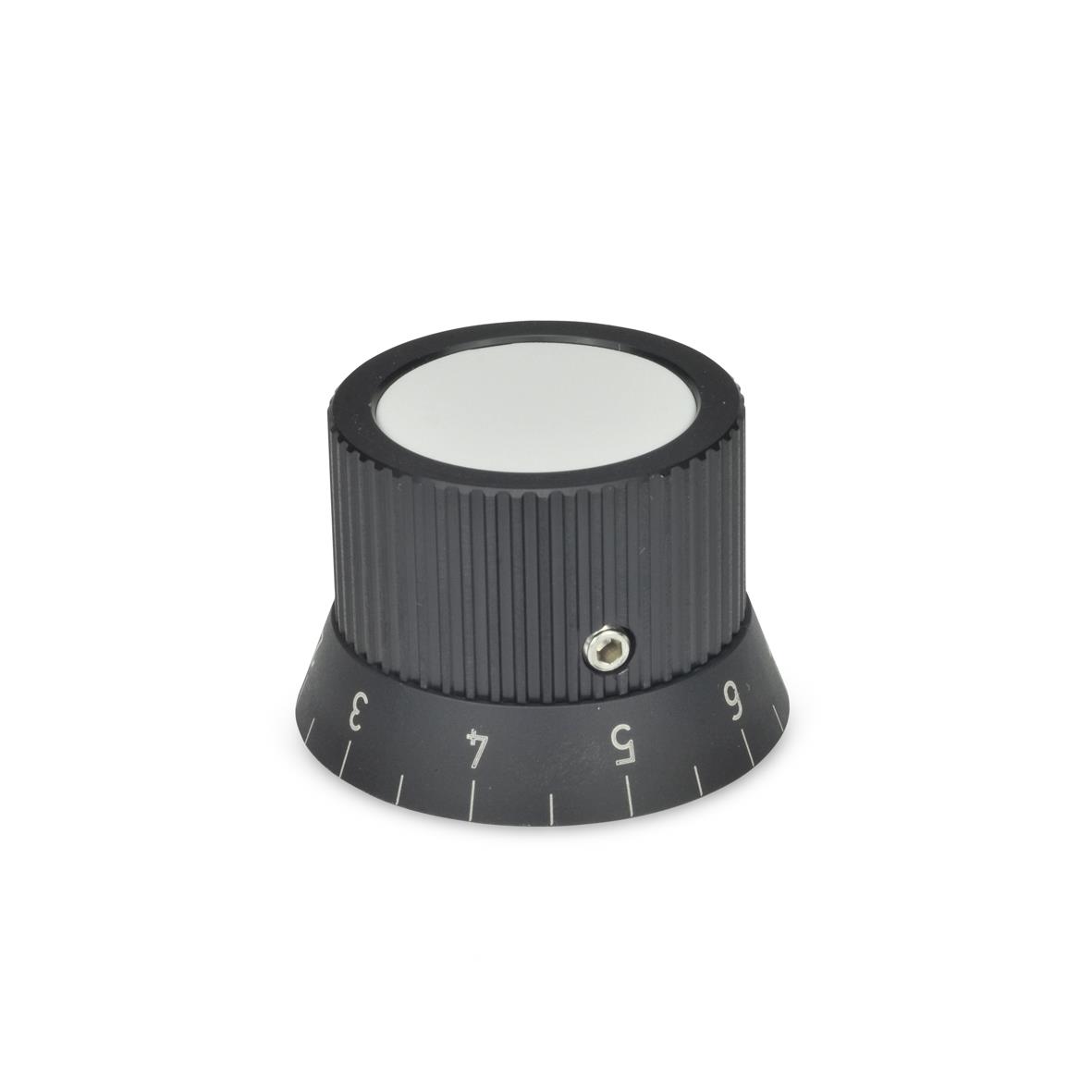

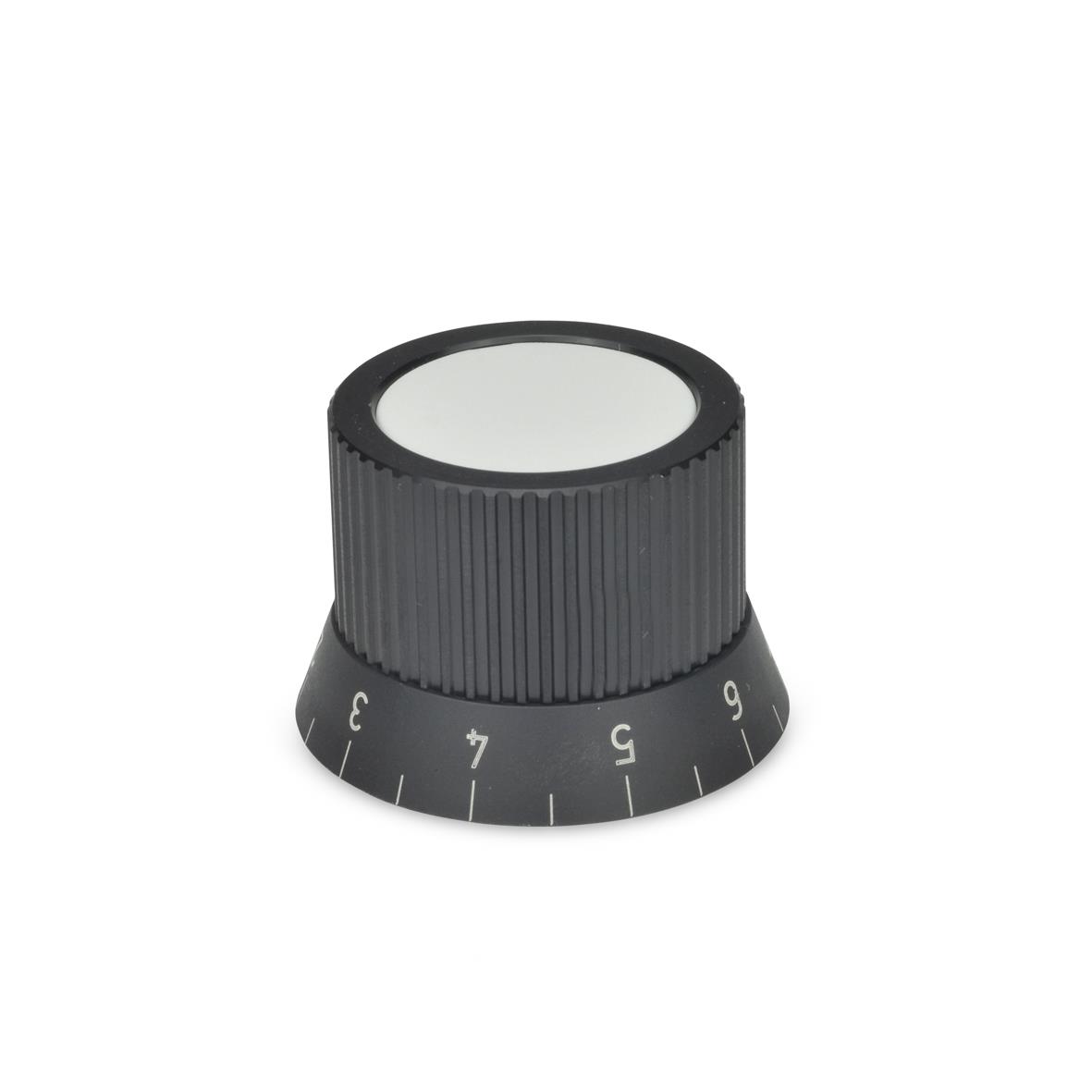

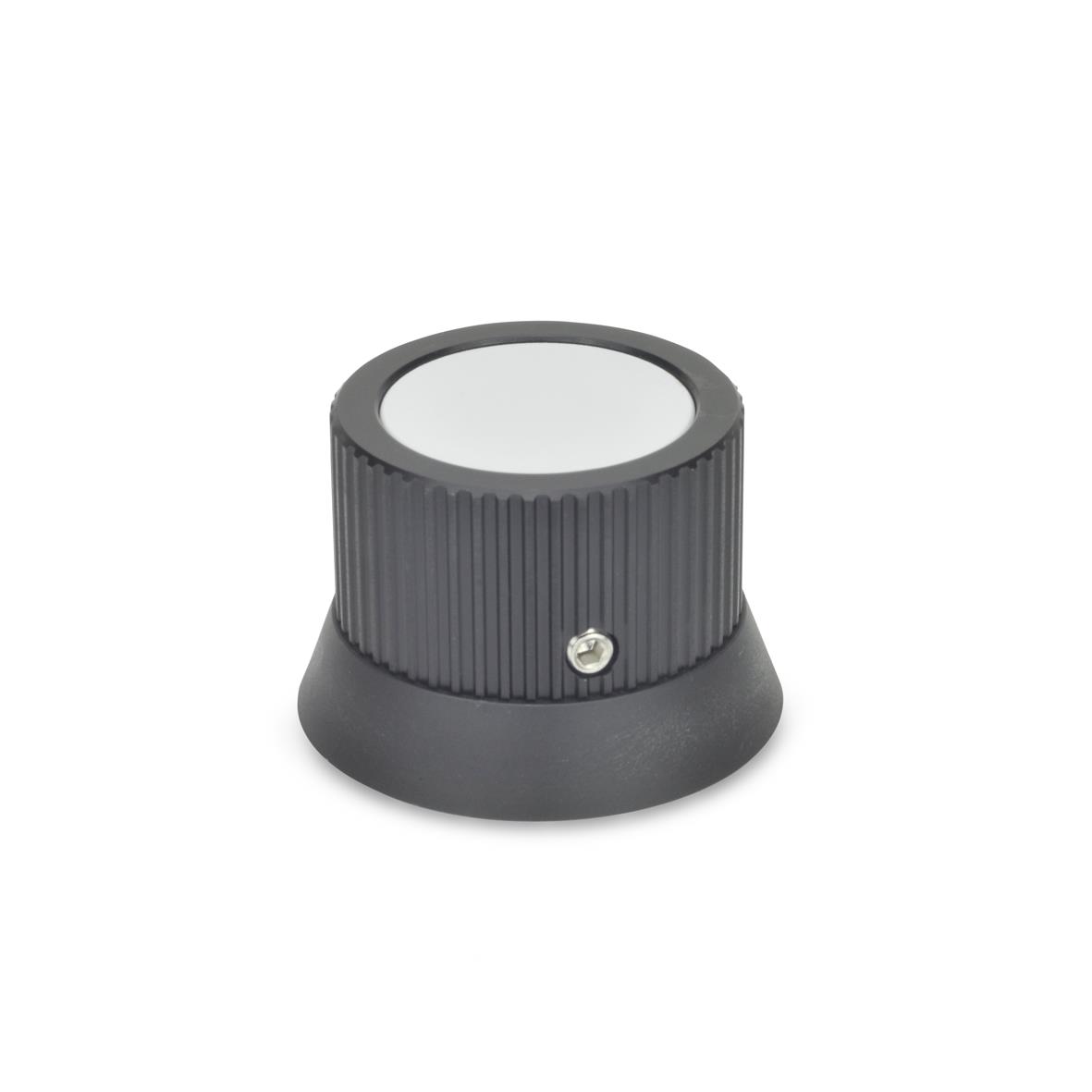

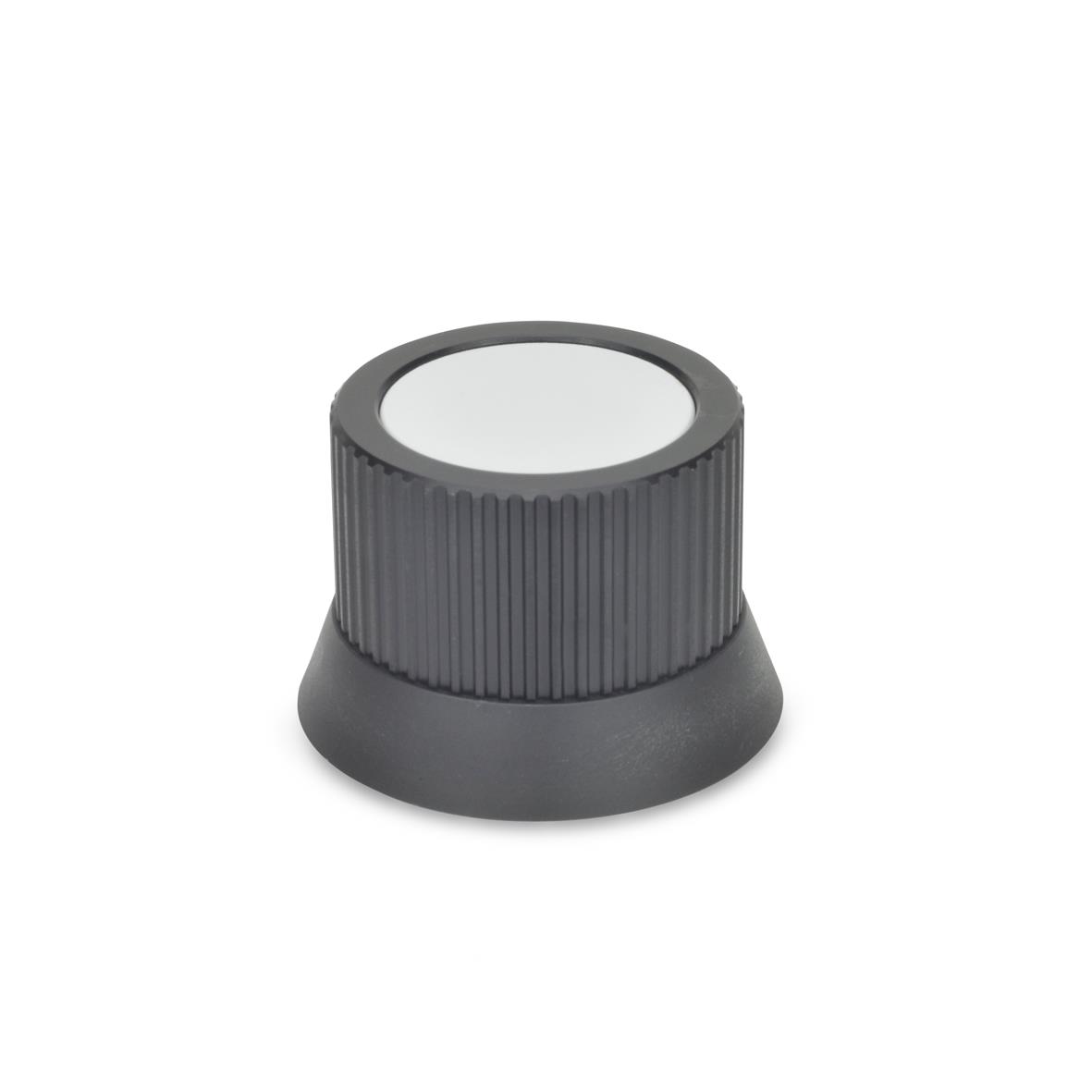

GN 726.2 控制旋鈕

商品編號：GN 726.2
GN 726.2 控制旋鈕的淺灰色蓋板覆蓋了固定部件和軸端。
封面也適合用於徽標或其他符號。
夾頭版本允許使用刻度或箭頭簡單調整類型。
除了標準刻度（S型）外，控制旋鈕還可以提供任何類型的刻度。
關於刻度的設計、編號運行、編號位置和編號順序，
請參閱訂購表“如何訂購刻度”→刻度上的刻度旋鈕佈局。
分享：
加入洽詢單

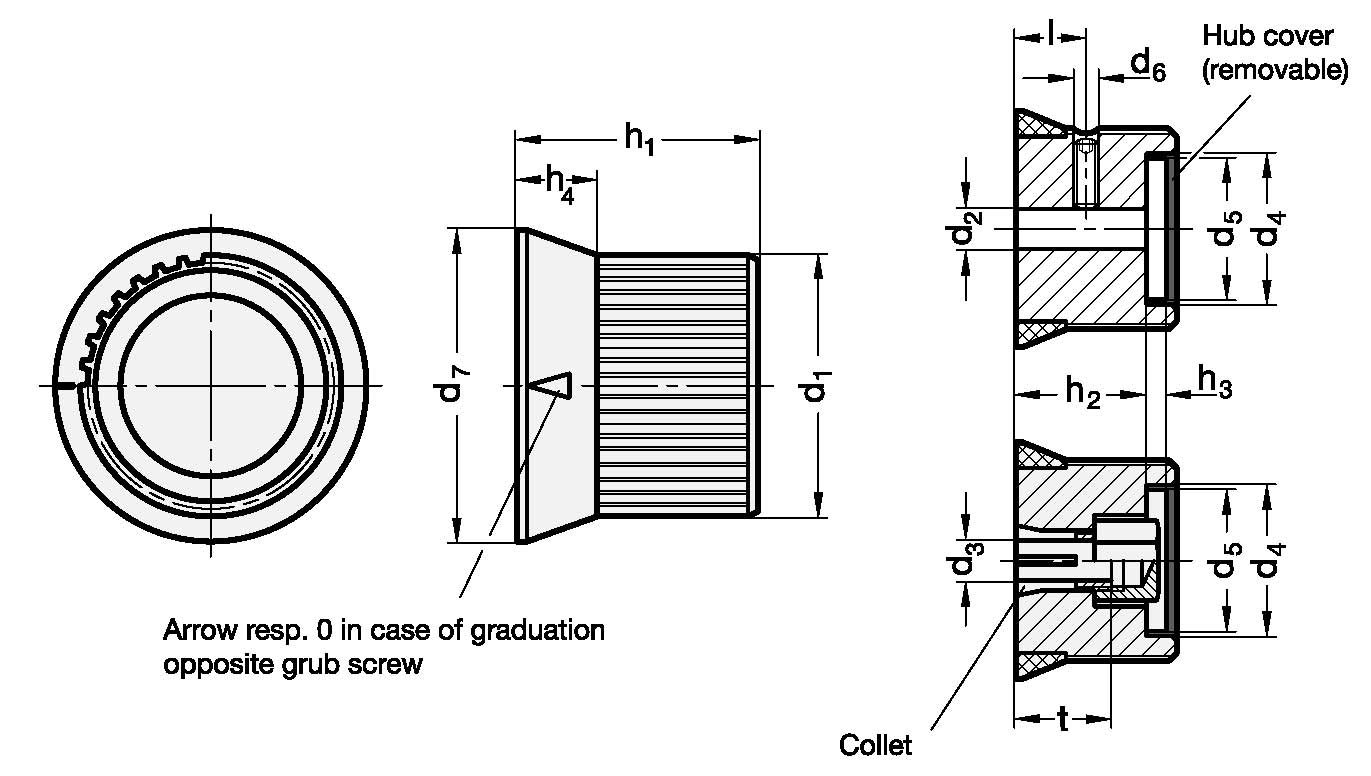

GN 726.2 sketch

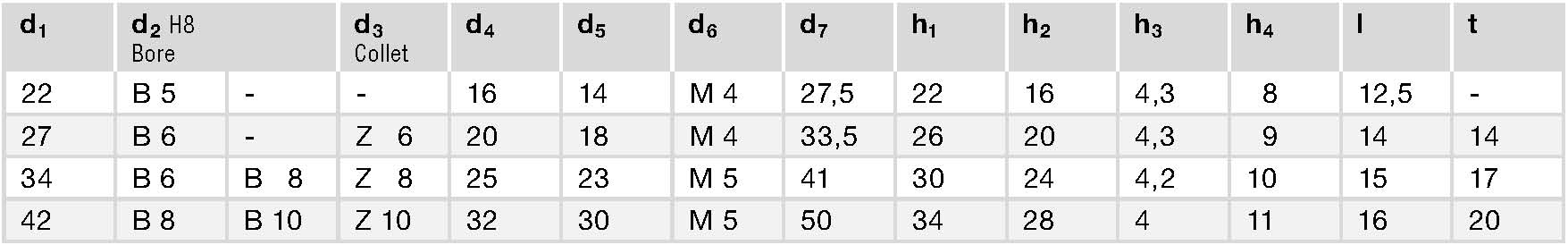

GN 726.2 spec
