GN 717 定位柱

商品編號：GN 717
GN 717 定位柱的特點是尺寸小。這些定位柱具有普遍適用性，因為它們可以防止配接分度孔的不對中和定位誤差。

帶拉環的 A 型可以在無法接近的地方用手指操作。如果要將定位柱安裝在無法用手接觸的區域，則可以使用帶有拉動環的 D 型進行遠距離操作。例如，這可以通過 GN 111.2系繩可以實現這一點。

在裝配過程中，固定鎖緊螺母時不應超過表中所示的最大擰緊扭矩。
分享：
加入洽詢單

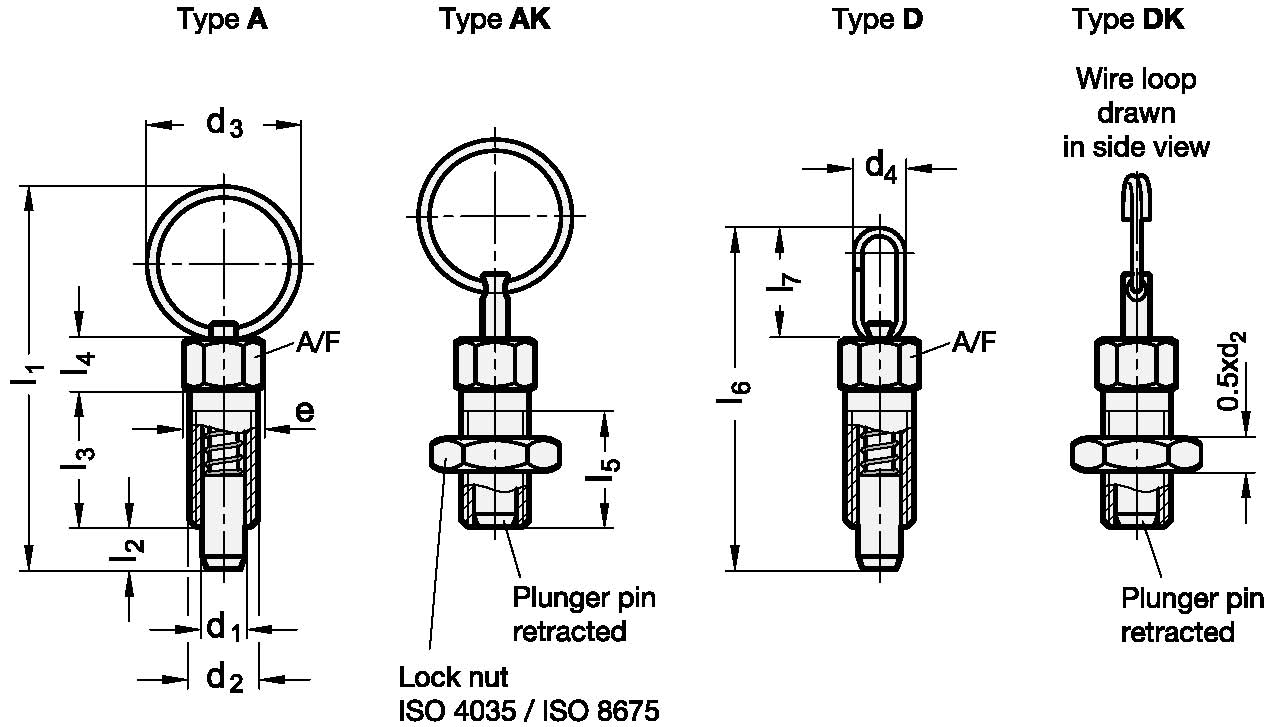

sketch

規格

本體材質 : 銷心材質 : 彈簧/拉環材質 :
ST - 鍍鋅鋼 不鏽鋼 AISI 303 不鏽鋼 AISI 301

型式 :

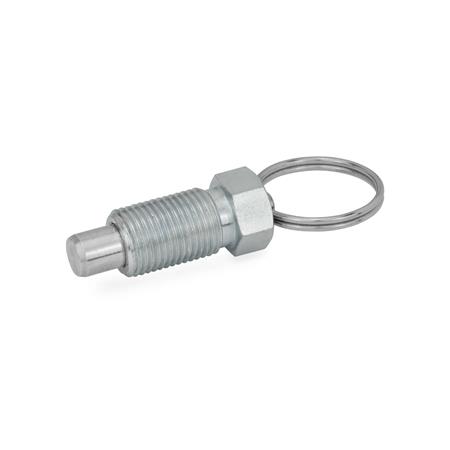

Type A : 圓形拉環，無螺帽

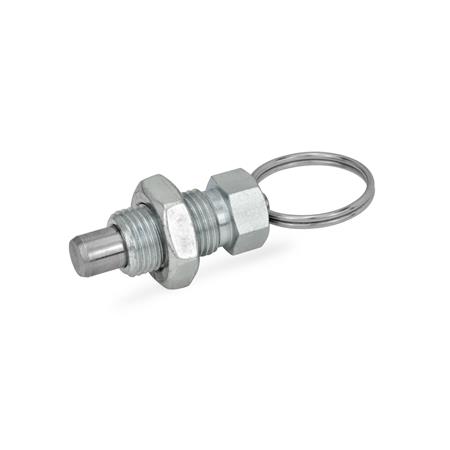

Type AK : 圓形拉環，有螺帽

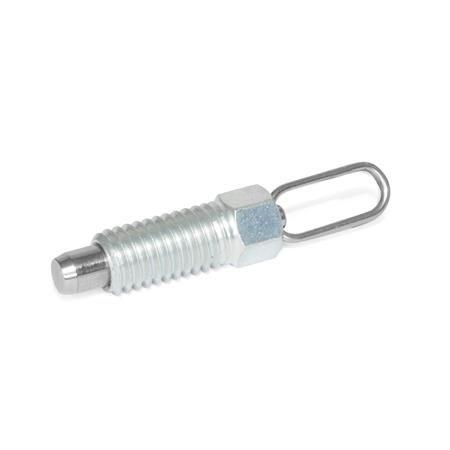

Type D : 扁形線環，無螺帽

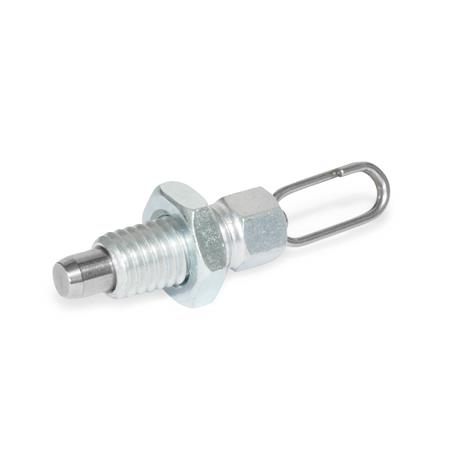

Type DK : 扁形線環，有螺帽

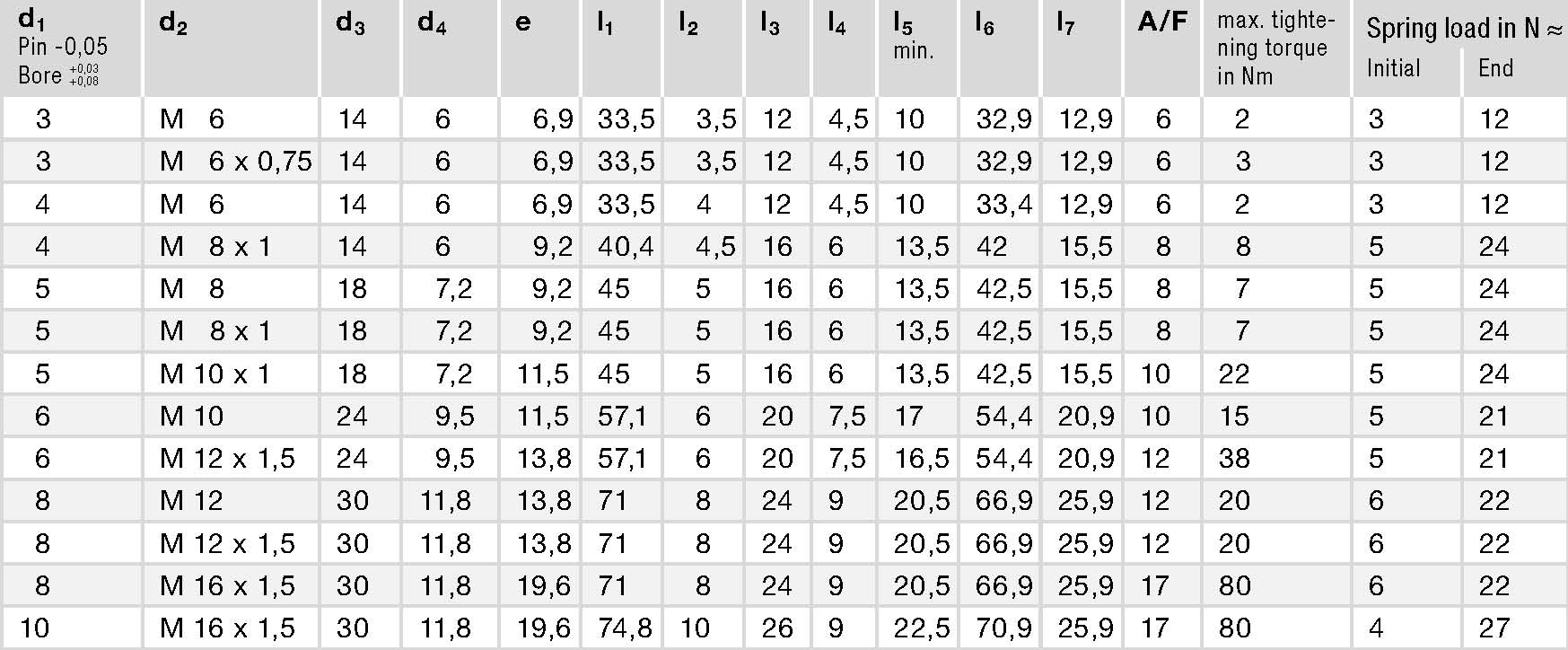

spec
