GN 717 定位柱

商品編號：GN 717
不鏽鋼定位柱 GN 717 的特點是尺寸小。這些定位柱具有普遍適用性，因為它們可以防止配接分度孔的不對中和定位誤差。

帶靜止位置的C / CK型用於柱塞必須保持在縮回位置的應用。

在裝配過程中，固定鎖緊螺母時不應超過表中所示的最大擰緊扭矩。
分享：
加入洽詢單

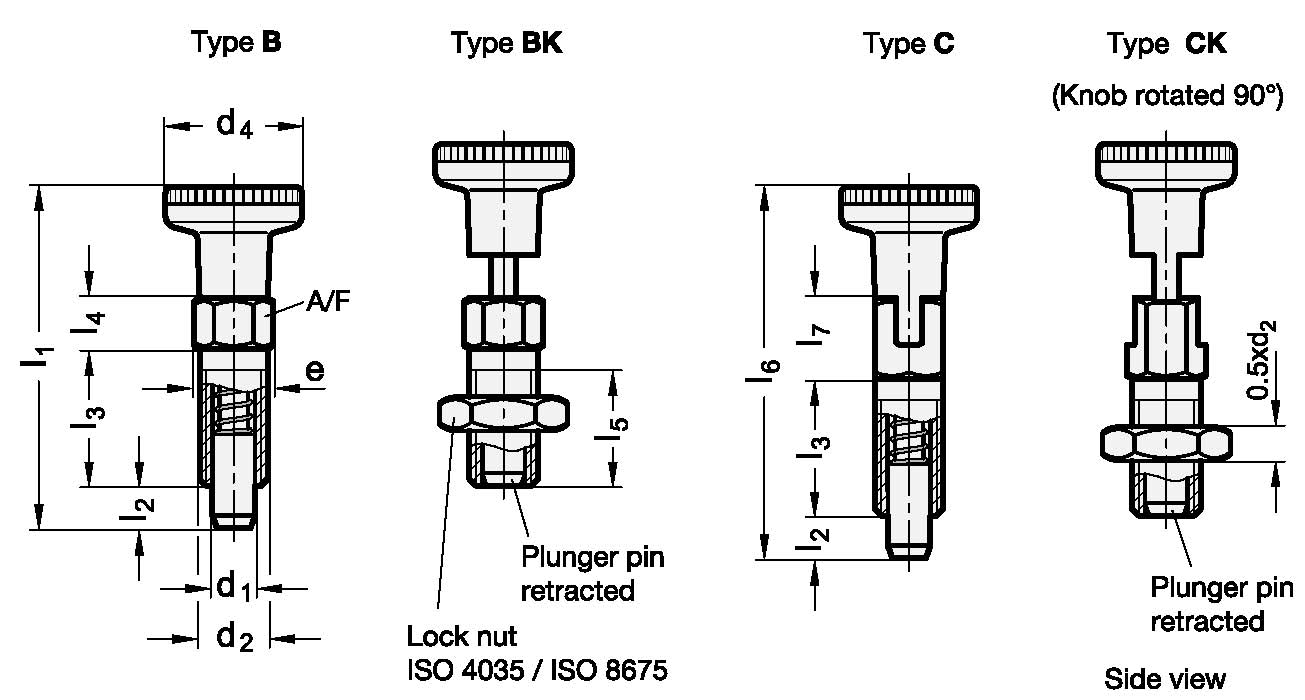

GN 717bc sketch

規格

本體材質 : 銷心材質 : 手鈕材質 : 彈簧材質 :
NI - 不鏽鋼 AISI 303 不鏽鋼 AISI 303 PA 塑膠
黑色霧面		 不鏽鋼 AISI 301

型式 :
Type B : 無鎖定，無螺帽
Type BK : 無鎖定，有螺帽
Type C : 有鎖定，無螺帽
Type CK : 有鎖定，有螺帽

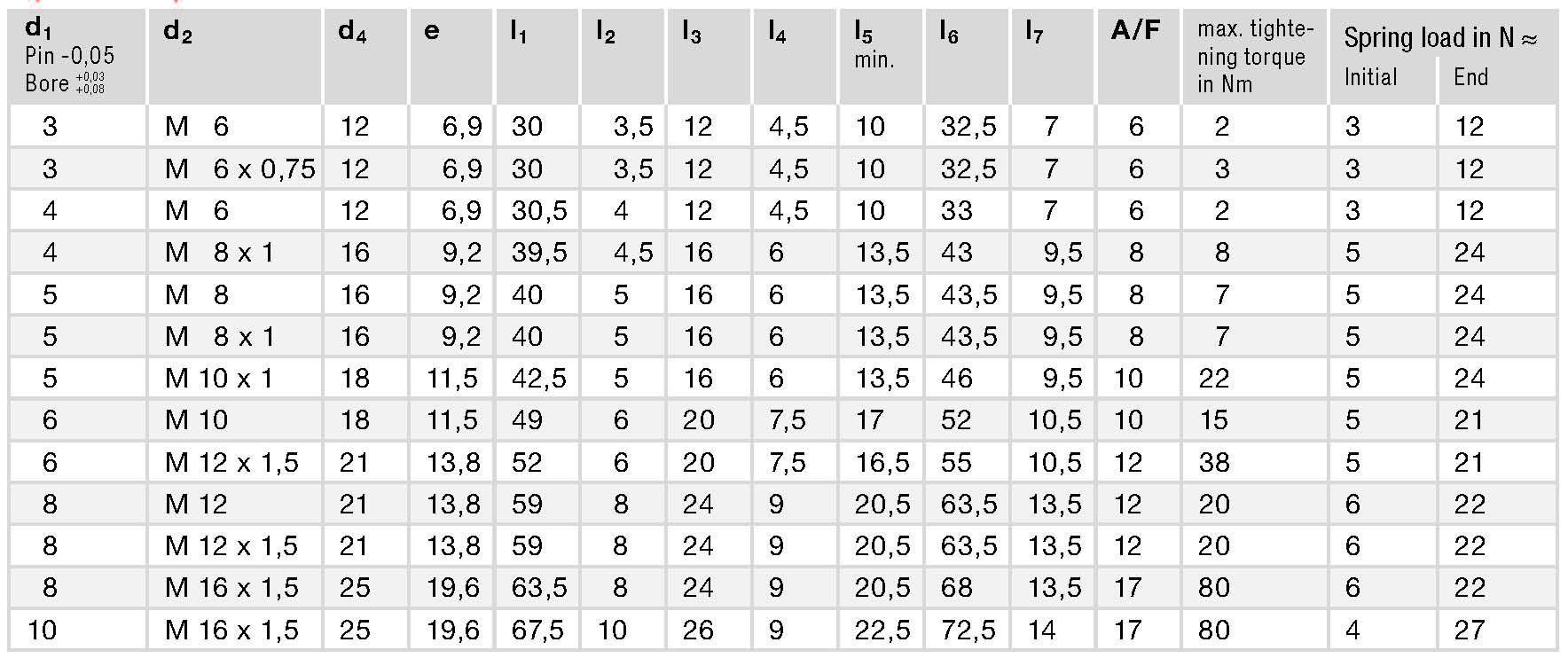

GN 717bc spec
