  • GN-555-Spoked-handwheels-Plastic-With-revolving-handle-Without-keyway
  • GN-555-Spoked-handwheels-Plastic-Without-handle-With-keyway
  • GN-555-Spoked-handwheels-Plastic-With-revolving-handle-With-keyway
  • GN-555-Spoked-handwheels-Plastic-Without-handle-Without-keyway
  • GN-555-Spoked-handwheels-Plastic-With-revolving-handle-Without-keyway
  • GN-555-Spoked-handwheels-Plastic-Without-handle-With-keyway
  • GN-555-Spoked-handwheels-Plastic-With-revolving-handle-With-keyway
  • GN-555-Spoked-handwheels-Plastic-Without-handle-Without-keyway
GN-555-Spoked-handwheels-Plastic-With-revolving-handle-Without-keyway GN-555-Spoked-handwheels-Plastic-Without-handle-With-keyway GN-555-Spoked-handwheels-Plastic-With-revolving-handle-With-keyway GN-555-Spoked-handwheels-Plastic-Without-handle-Without-keyway

GN 555 輻條手輪

商品編號：GN 555
GN 555 手輪鋼襯套的孔徑和平面僅在壓緊並卡在環上後才進行加工，
確保輪緣具有良好的同心度和平面運行。
保證安裝面與孔徑垂直的準確配合孔。
GN 555 手輪也可提供不帶輪轂孔的手輪。
分享：
加入洽詢單

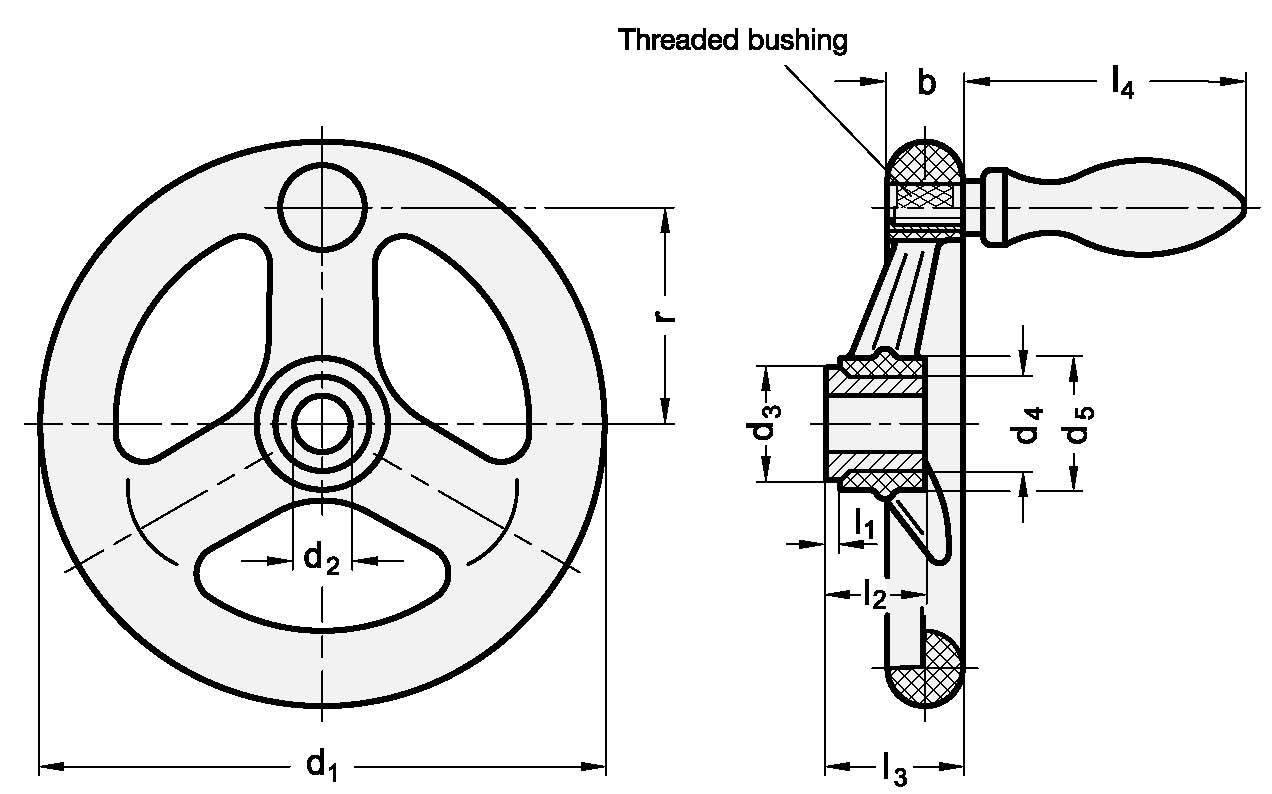

GN 555 sketch

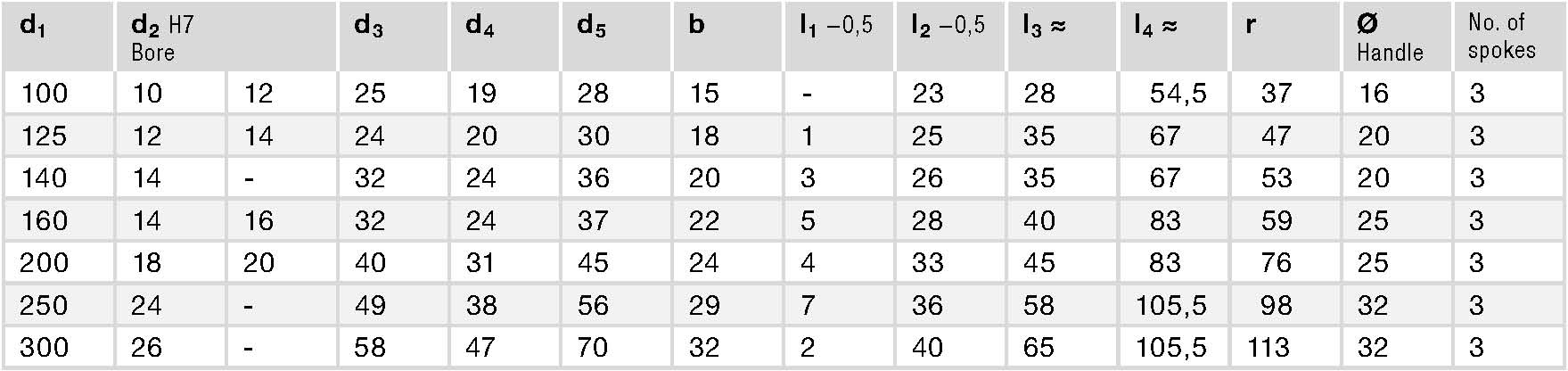

GN 555 spec
