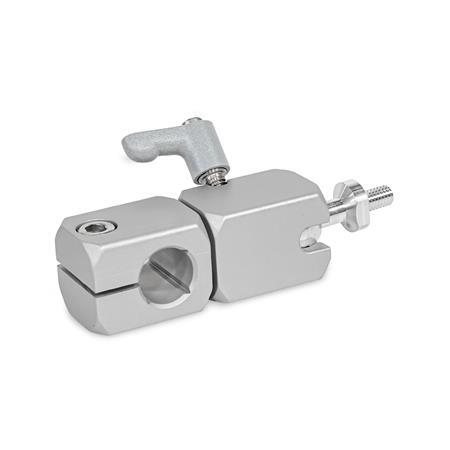

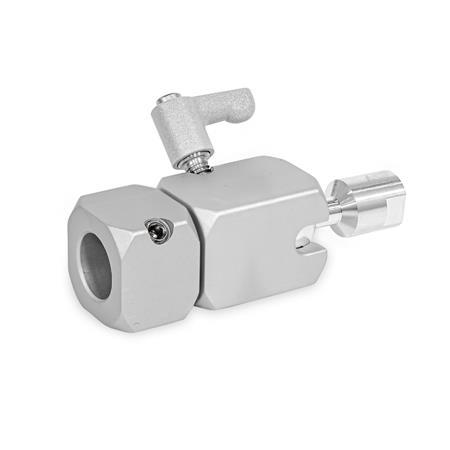

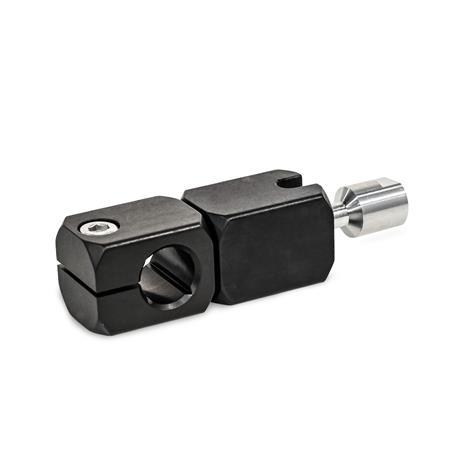

GN 487 管夾座

商品編號：GN 487

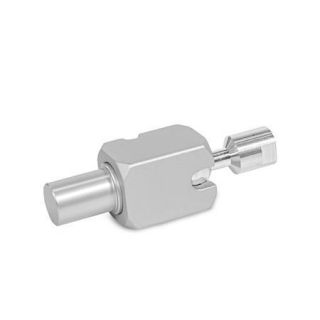

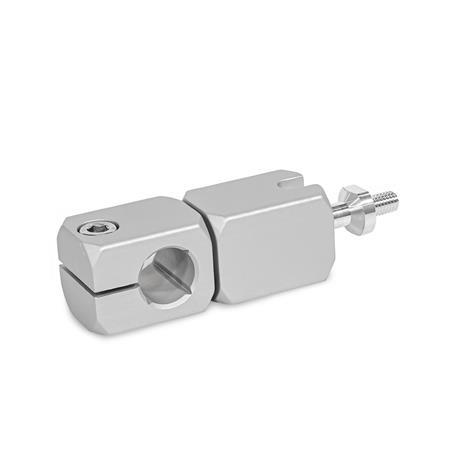

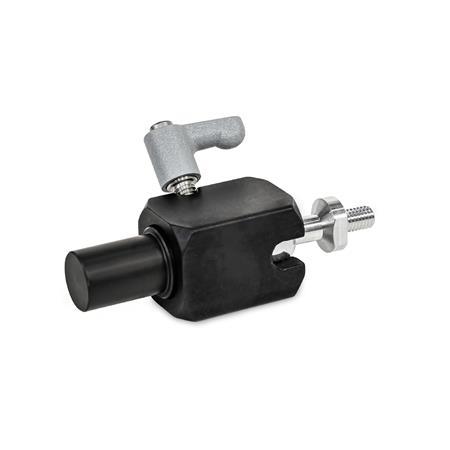

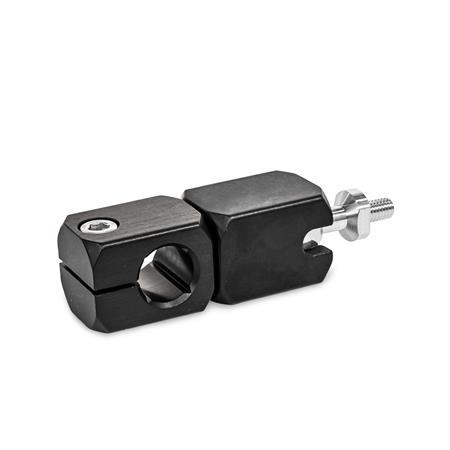

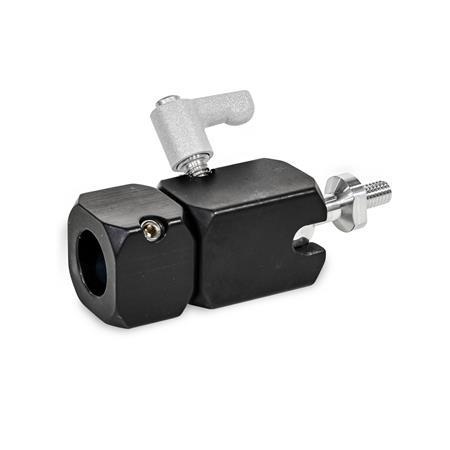

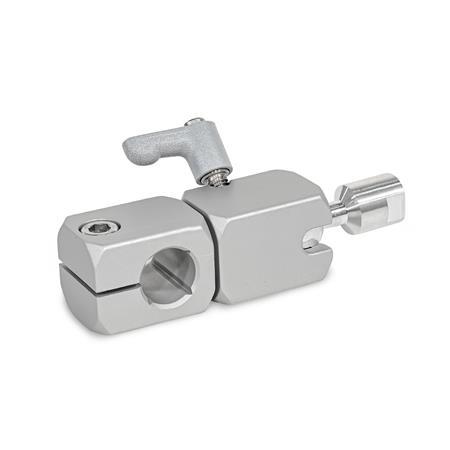

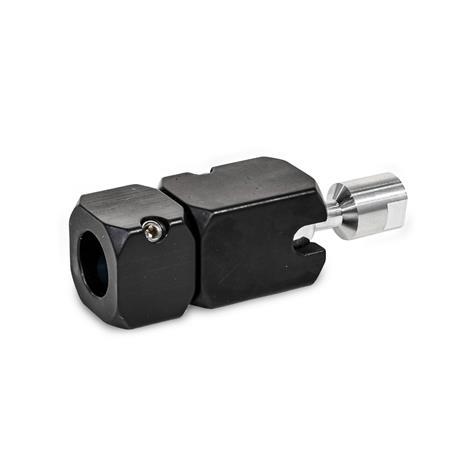

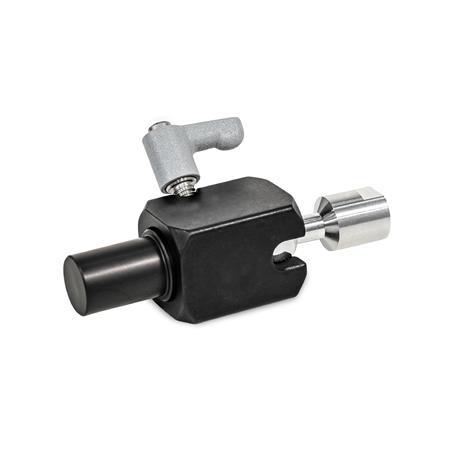

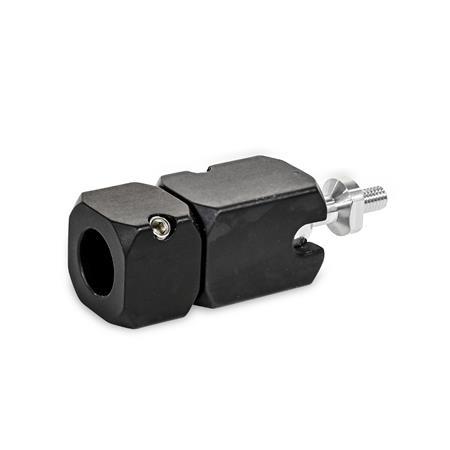

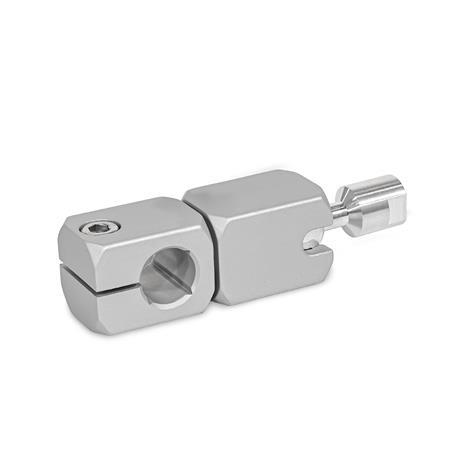

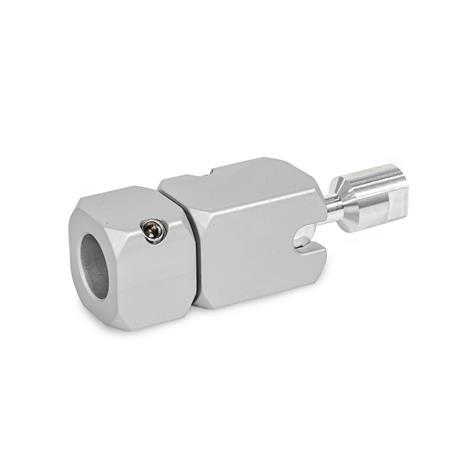

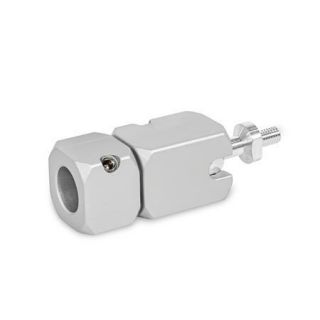

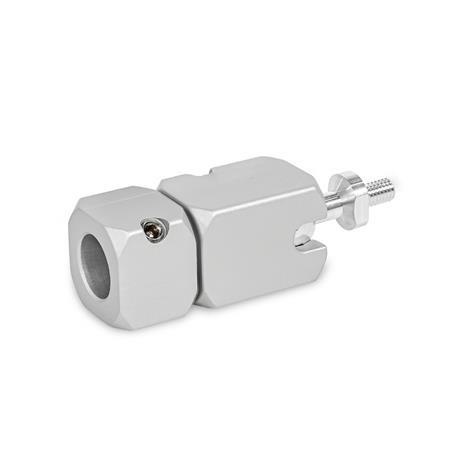

旋轉球形接頭安裝夾 GN 487 允許在旋轉範圍內精確、無級地調整球樞軸。這使得定位和調整掃描器、相機和照明等元件變得容易。

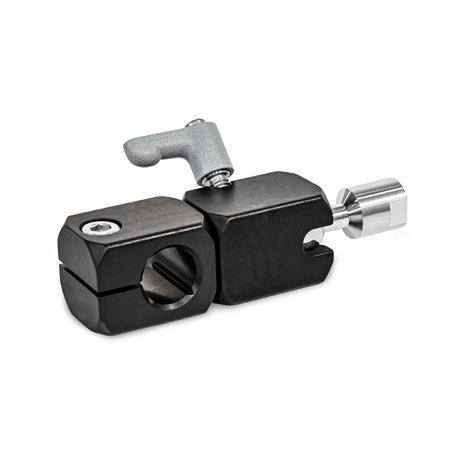

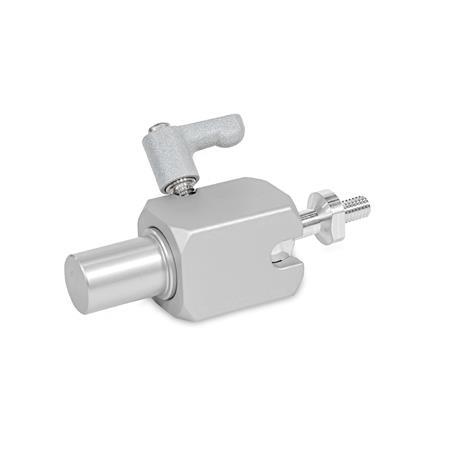

得益於高效的夾緊機構，即使是很小的擰緊扭矩也能在球上產生相對強大的夾緊力。要重新調整接頭，必須完全鬆開夾緊裝置。手柄（標識號 1）可用於無需工具即可輕鬆操作夾緊機構。

為了獲得永久的高停止扭矩，滾珠的接觸面必須保持無油脂。超過推薦的擰緊扭矩會增加停止扭矩，但可能導致夾緊機構的磨損增加。
分享：
加入洽詢單

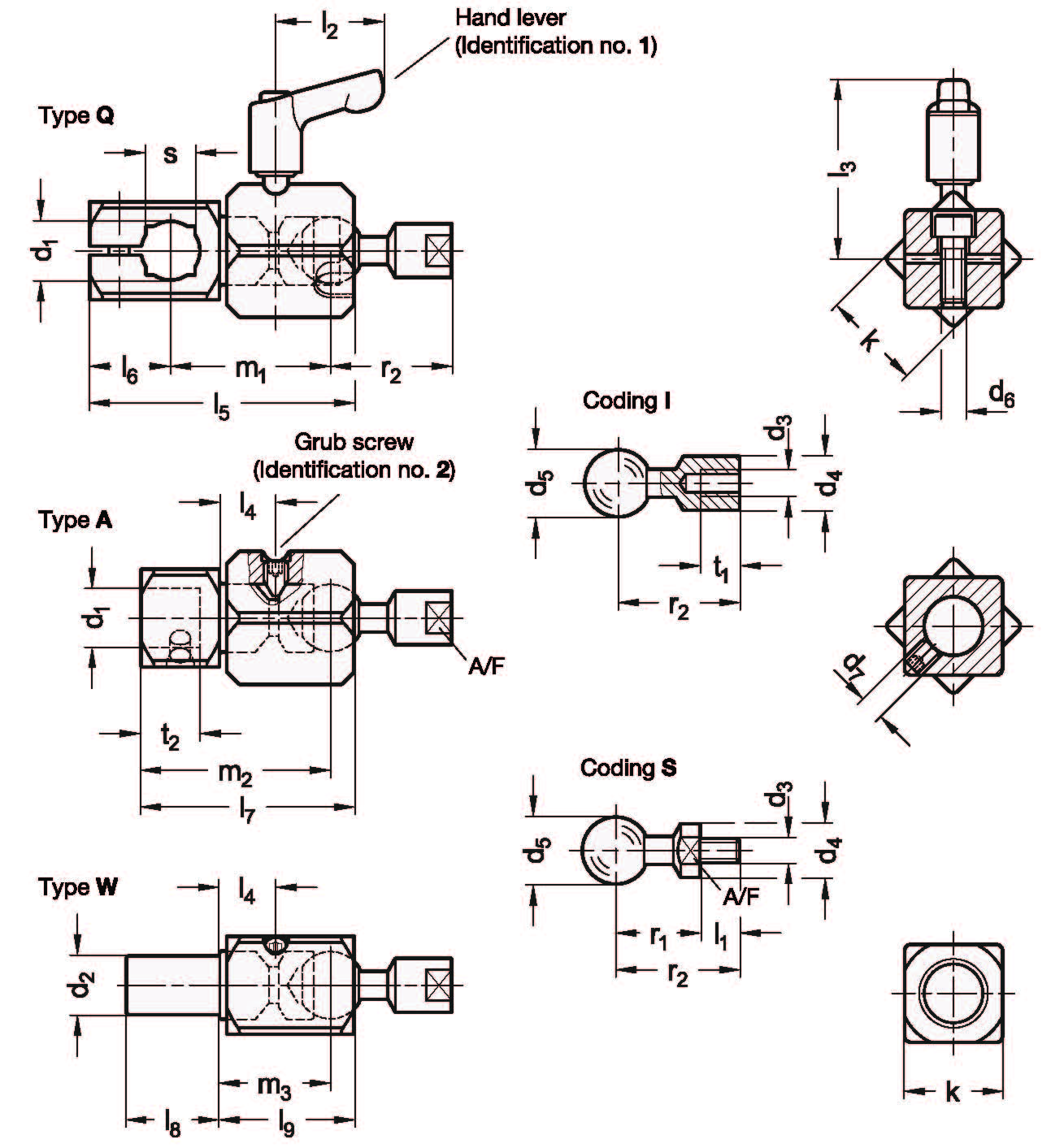

GN 487 sketch_頁面_1

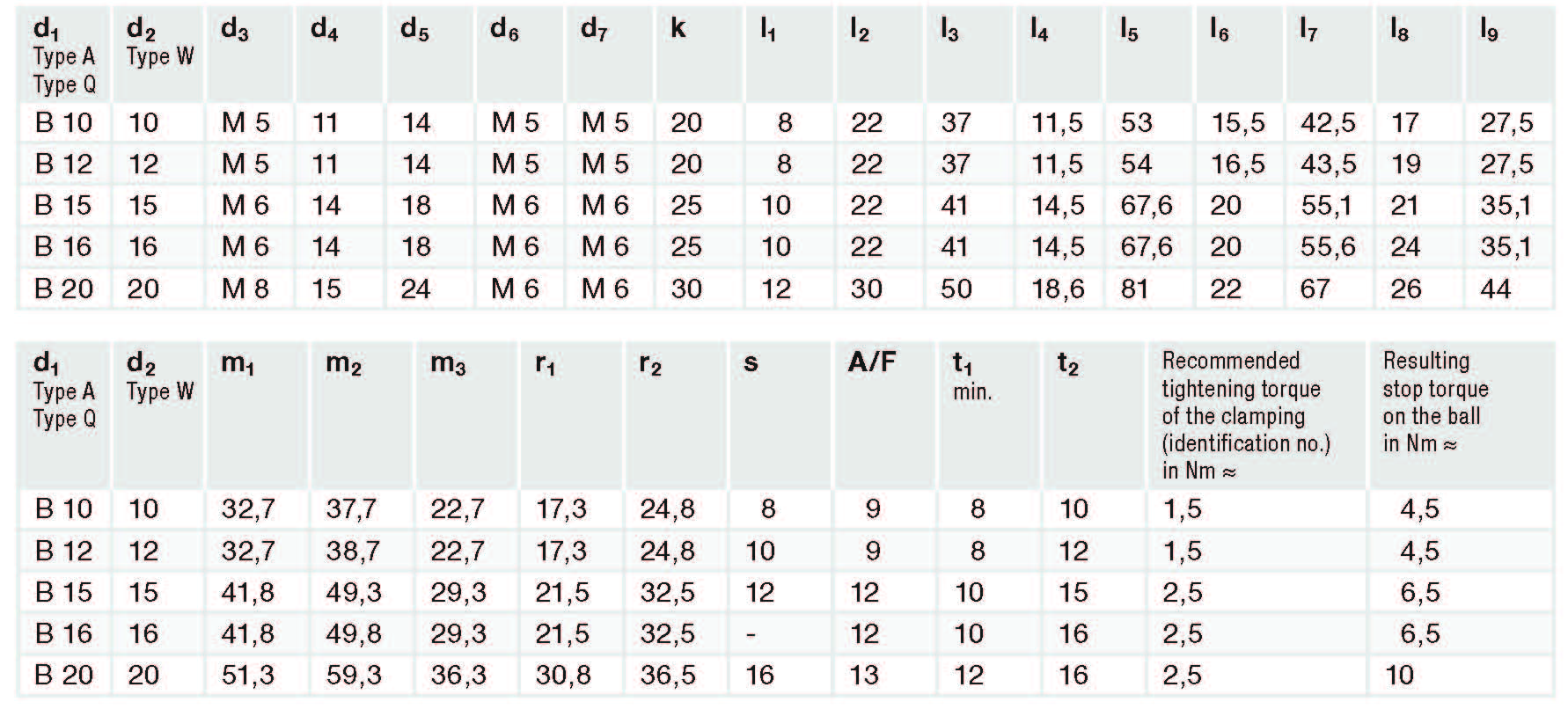

GN 487 spec_頁面_1
