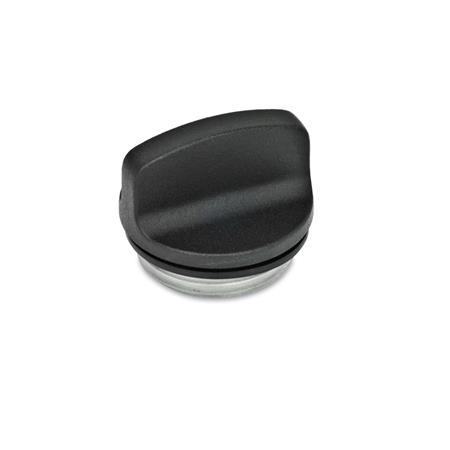

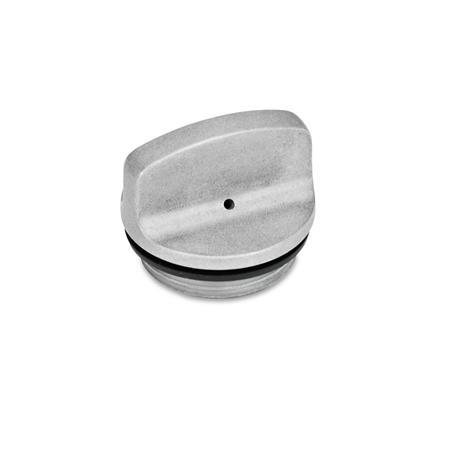

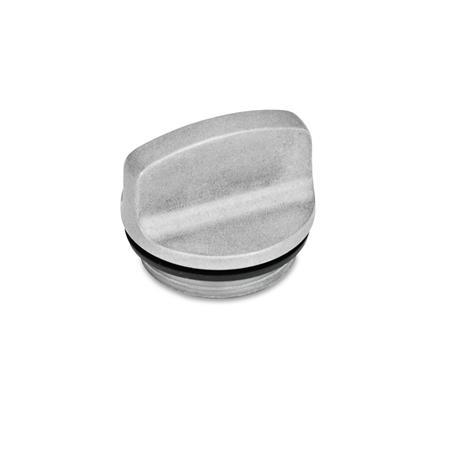

GN 441 油塞

商品編號：GN 441
外徑為 d1 的螺紋插頭 GN 441 / GN 442 與 DIN 3852 管道螺栓連接的旋入式孔相匹配。
密封圈嵌入在平邊的徑向凹槽中。這可以防止密封件在擰緊過程中丟失或擠出。
分享：
加入洽詢單

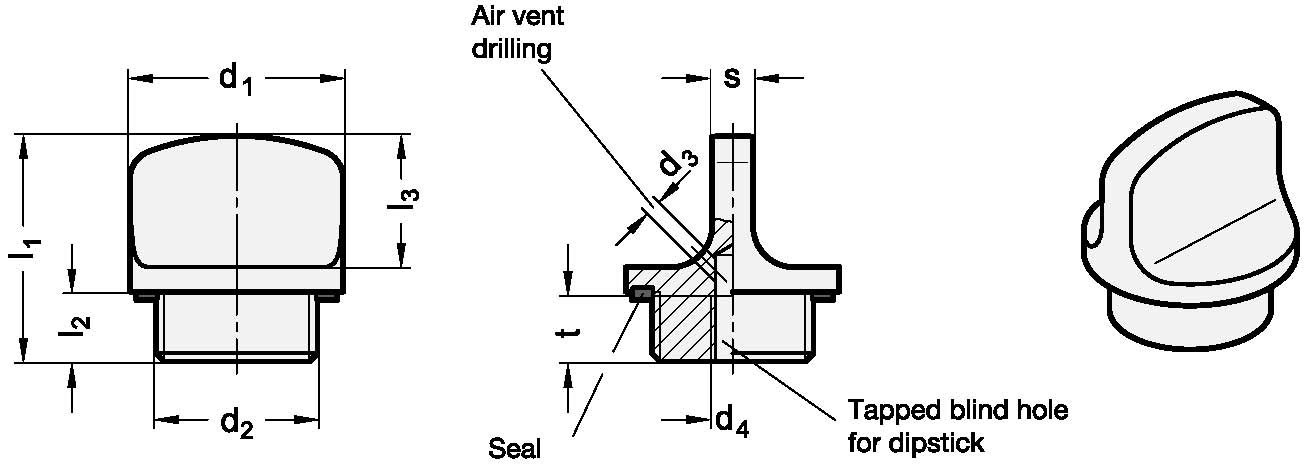

GN 441 sketch

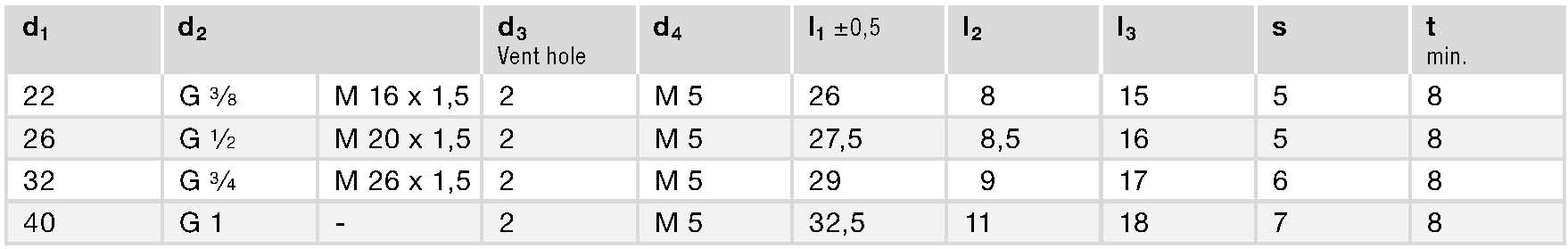

GN 441 spec
