DIN 808 萬向接頭

商品編號：DIN 808
帶滾針軸承DIN 808的萬向接頭的允許轉分高於帶摩擦軸承的萬向接頭，但仍取決於載荷、使用時間以及角度配置。理想的應用允許高達 4000 r.p.m 的速度。

滾針軸承使 3° 至 5° 角佈置的萬向接頭比配備摩擦軸承的萬向接頭效率高得多。滾針軸承具有永久潤滑功能，因此不需要維修。

有關選擇帶滾針軸承的萬向接頭的資訊。
分享：
加入洽詢單

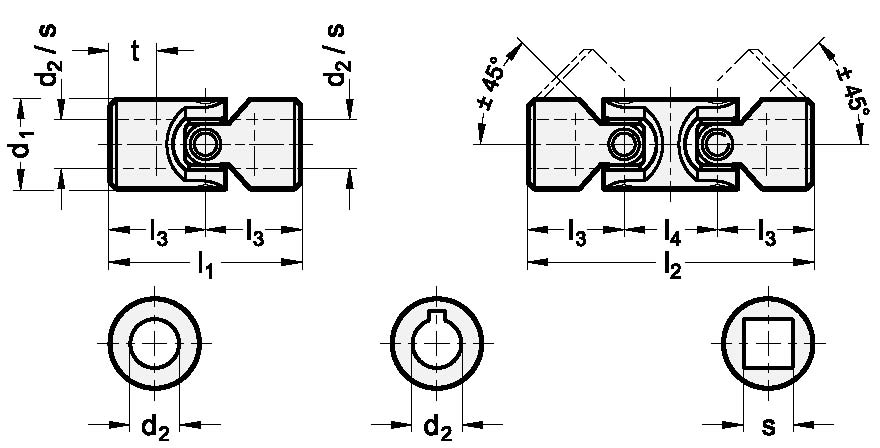

DIN 808n sketch

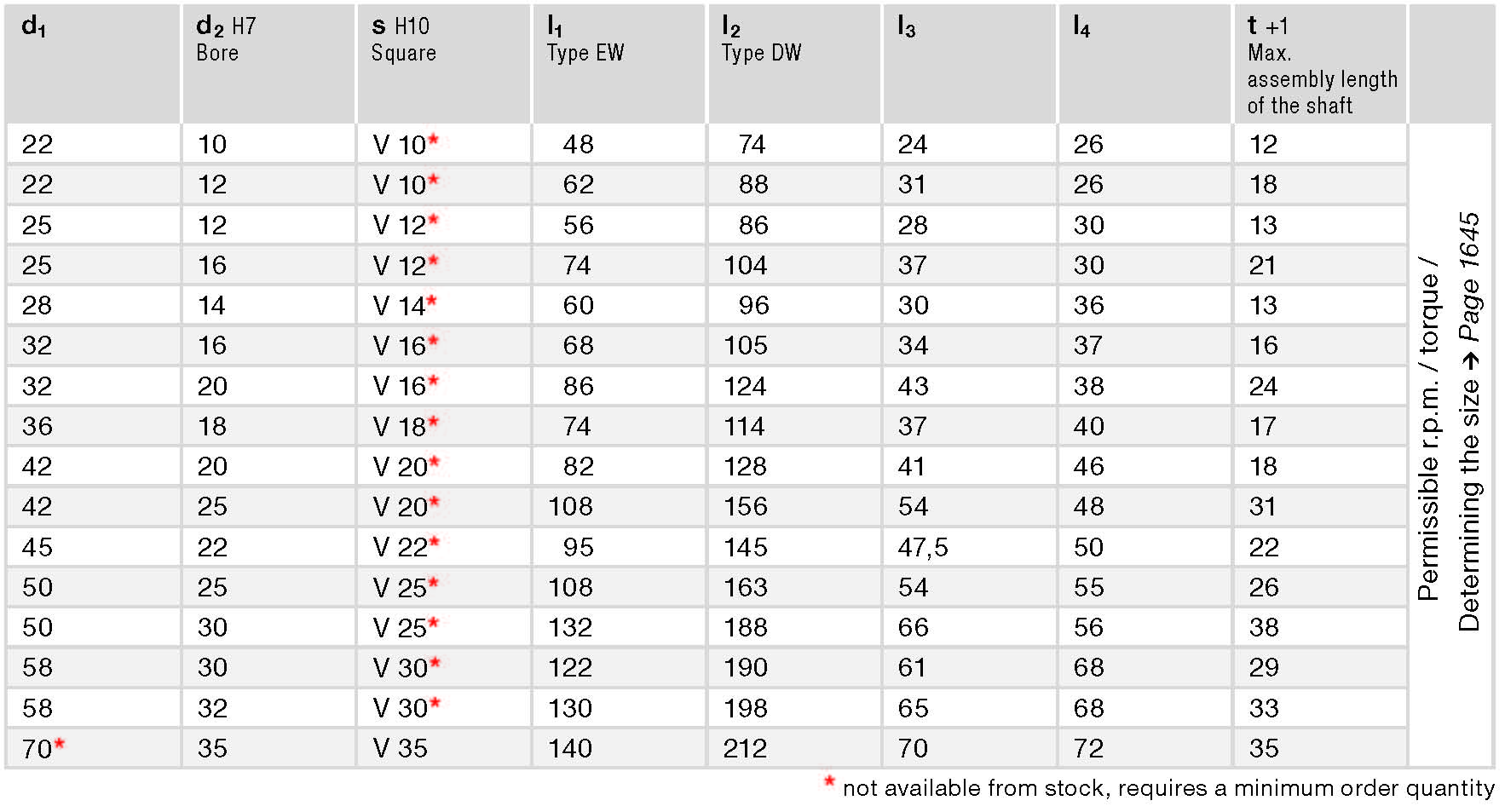

DIN 808n spec
