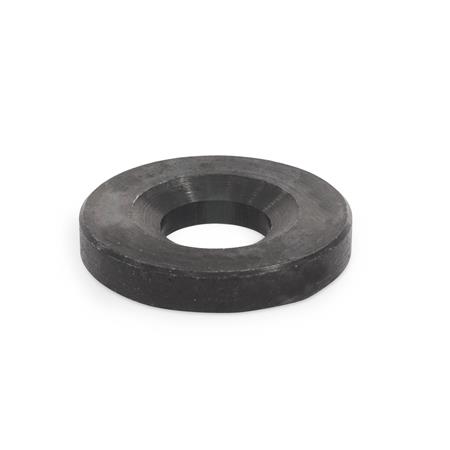

  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-G-Dished-washer-with-dsub4sub-dsub2sub

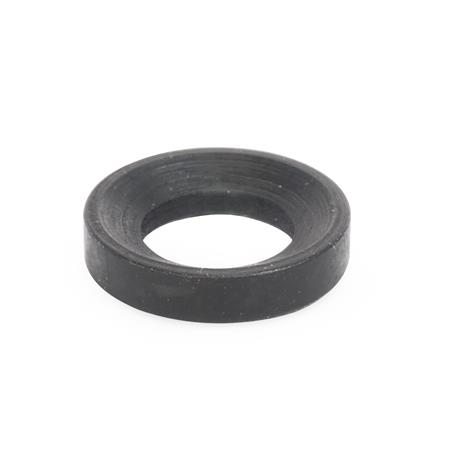

  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-D-Dished-washer-with-dsub3sub-dsub2sub

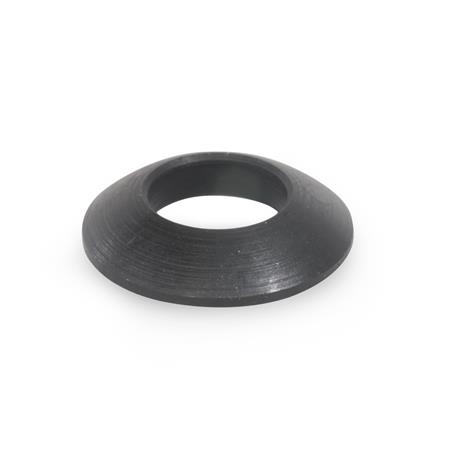

  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-C-Spherical-seat-washer
  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-G-Dished-washer-with-dsub4sub-dsub2sub
  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-D-Dished-washer-with-dsub3sub-dsub2sub
  • DIN-6319-Spherical-Washers-Dished-Washers-Steel-C-Spherical-seat-washer
DIN-6319-Spherical-Washers-Dished-Washers-Steel-G-Dished-washer-with-dsub4sub-dsub2sub DIN-6319-Spherical-Washers-Dished-Washers-Steel-D-Dished-washer-with-dsub3sub-dsub2sub DIN-6319-Spherical-Washers-Dished-Washers-Steel-C-Spherical-seat-washer

DIN 6319 球形墊圈

商品編號：DIN 6319
球形墊圈和碟形墊圈DIN 6319用於夾緊非平行表面。
外徑增大的G型碟形墊圈主要用於細長孔。
當使用帶球形閥座的六角螺母DIN 6330 B型時，球形墊圈是多餘的。
分享：
加入洽詢單

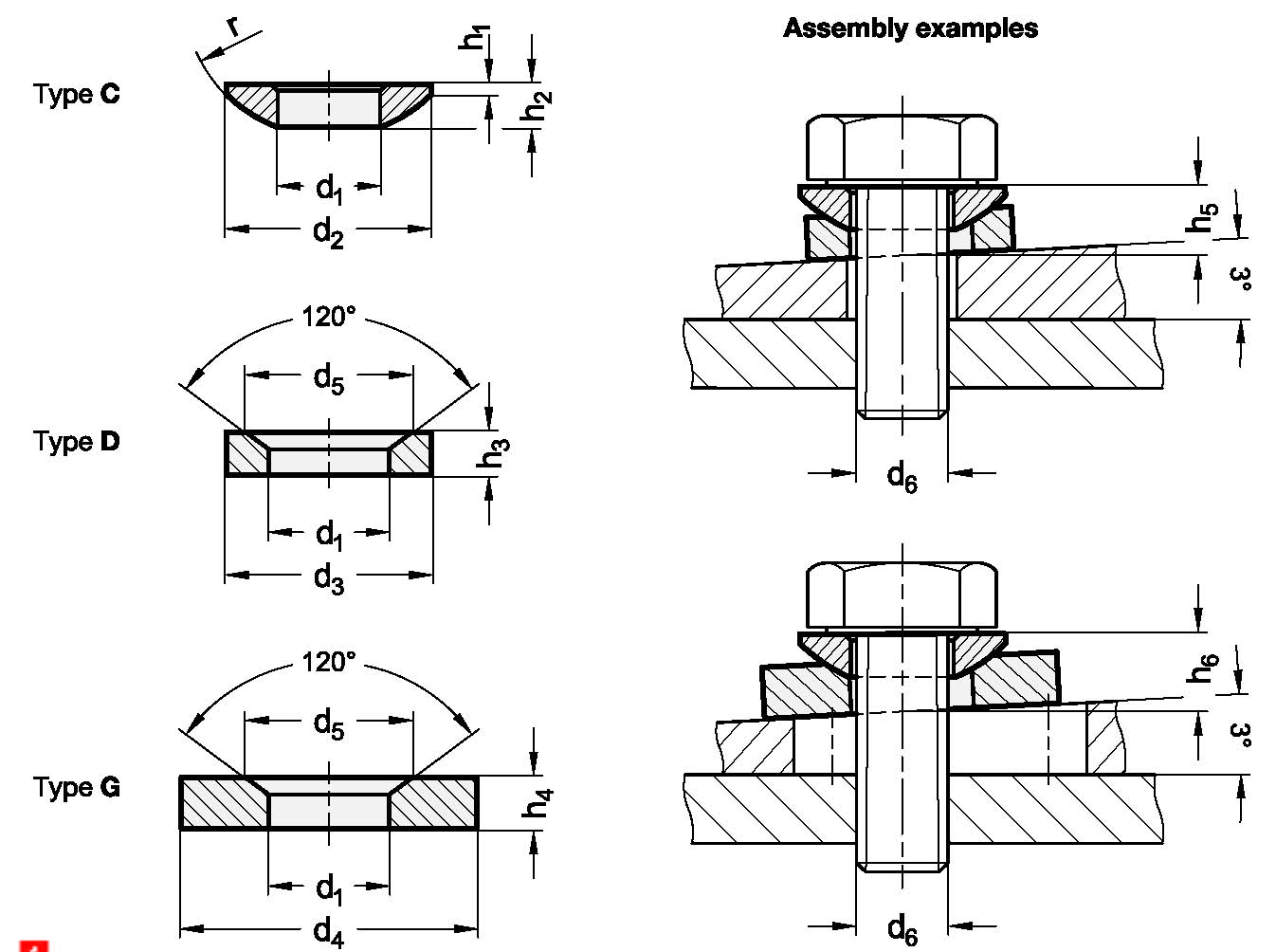

DIN 6319 sketch

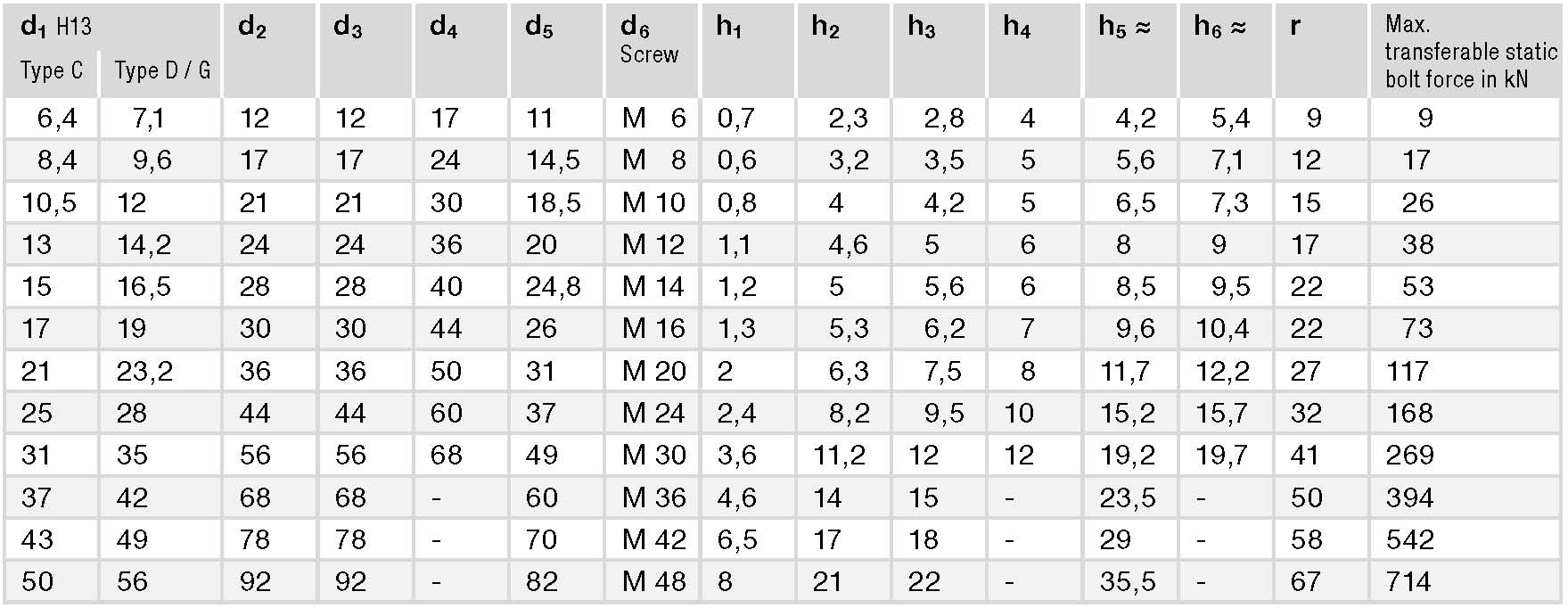

DIN 6319 spec
